Product Summary

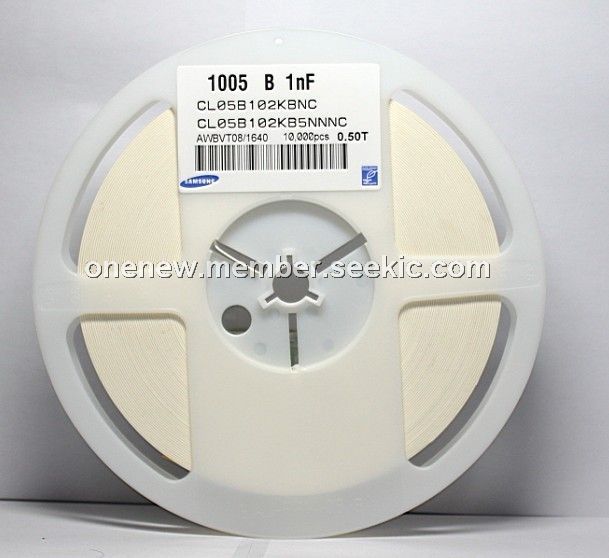

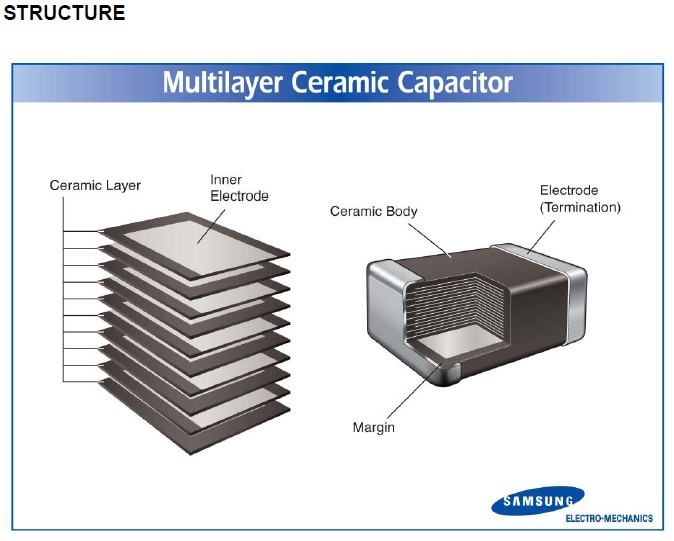

The CL05B102KBNC is high frequency multilayer ceramic capacitor. The CL05B102KBNC application is made of many layers of Class I(C0G, etc) ceramic and Cu inner electrodes like sandwich. Class I(C0G, etc) ceramic has a small TCC(Temperature Coefficient of Capacitance), a better frequency performance and a low ESR(Equivalent Series Resistance) value. Therefore, it is used in RF applications such as cellular phone, tuner, and so on.
Parametrics
Absolute maximum ratings: (1)Packaging: Cassette, Paper 13 Reel; (2)size: 5mm, 1.0LX0.5mm; (3)Operation Temperature Range: -55 to +125℃; (4)Temperature Coefficient(PPM/℃): 0 to ±30; (5)Nominal Capacitance: 100pF.
Features
Features: (1)Miniature Size; (2)Wide Capacitance and Voltage Range; (3)Highly Reliable Performance; (4)Tape & Reel for Surface Mount Assembly; (5)Low ESR; (6)High Q at High Frequencies; (7)Stable Temperature Dependence of Capacitance.
Diagrams
![]() |
