Product Summary

The MT48H16M16LFBF-75 is a high-speed CMOS, dynamic random-access memory containing 268,435,456-bits. It is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the x16’s 67,108,864-bit banks is organized as 8,192 rows by 512 columns by 16 bits. Each of the x32’s 67,108,864-bit banks is organized as 4,096 rows by 512 columns by 32 bits.

Parametrics

MT48H16M16LFBF-75 absolute maximum ratings: (1)Voltage on VDD/VDDQ supply relative to VSS (1.8V): –0.3 to +2.7 V; (2)Voltage on inputs, NC or I/O balls relative to VSS (1.8V): –0.3 to +2.7V; (3)Storage temperature plastic: –55 to +150℃。

Features

MT48H16M16LFBF-75 features: (1)Fully synchronous; all signals registered on positive edge of system clock; (2)VDD/VDDQ = 1.70–1.95V; (3)Internal, pipelined operation; column address can be changed every clock cycle; (4)Four internal banks for concurrent operation; (5)Programmable burst lengths: 1, 2, 4, 8, or continuous page1; (6)Auto precharge, includes concurrent auto precharge; (7)Auto refresh and self refresh modes; (8)LVTTL-compatible inputs and outputs; (9)On-chip temperature sensor to control refresh rate; (10)Partial-array self refresh (PASR); (11)Deep power-down (DPD); (12)Selectable output drive (DS); (13)64ms refresh period (8,192 rows).

Diagrams

MT48H16M16LFBF-75 functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MT48H16M16LFBF-75 AT:G TR
MT48H16M16LFBF-75 AT:G TR

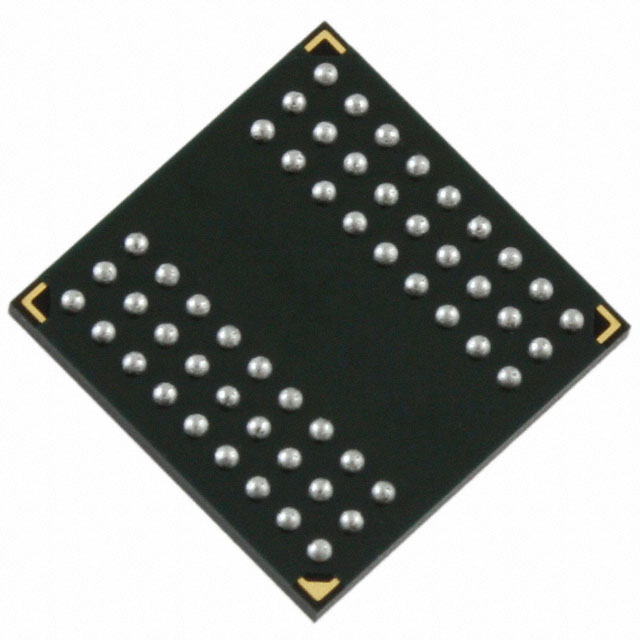

IC SDRAM 256MBIT 132MHZ 54VFBGA
Data Sheet
Negotiable
MT48H16M16LFBF-75 IT:G TR
MT48H16M16LFBF-75 IT:G TR

IC SDRAM 256MBIT 132MHZ 54VFBGA
Data Sheet
Negotiable
MT48H16M16LFBF-75 IT:H TR
MT48H16M16LFBF-75 IT:H TR

IC SDRAM 256MBIT 133MHZ 54VFBGA
Data Sheet
0-1000: $2.77
1000-2000: $2.69
2000-3000: $2.60
3000-5000: $2.47
5000-10000: $2.42
10000-25000: $2.39
MT48H16M16LFBF-75 IT:H
MT48H16M16LFBF-75 IT:H

IC SDRAM 256MBIT 133MHZ 54VFBGA
Data Sheet
0-1000: $2.77
MT48H16M16LFBF-75:G TR
MT48H16M16LFBF-75:G TR

IC SDRAM 256MBIT 132MHZ 54VFBGA
Data Sheet
Negotiable
MT48H16M16LFBF-75:H
MT48H16M16LFBF-75:H

SDRAM 256M-BIT 1.8V 54-PIN VFBGA
Data Sheet
0-1000: $2.77
