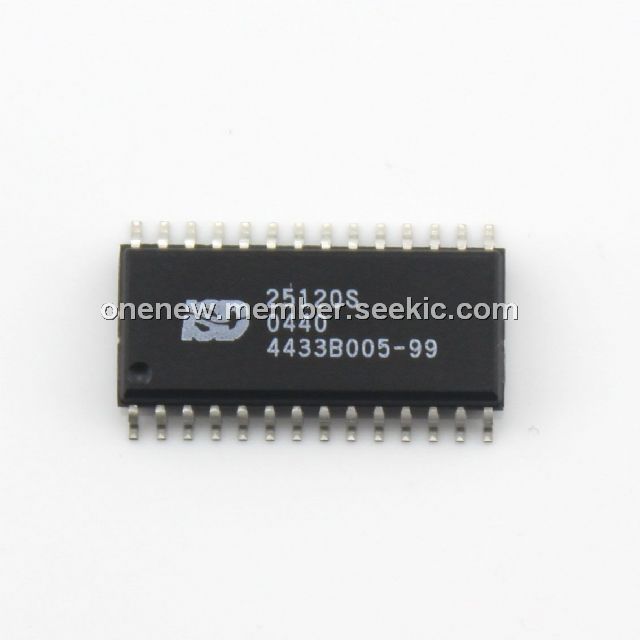

ISD25120S

CMOS device, SOP28, –0.3 V to +7.0 V, Easy-to-use, single-chip, On-chip clock source

Rated 5 Rating 5 | reviews | Write a review

Price:: US $12.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $12.00~15.00

PartNumber:: ISD25120S

Brand:: Nuvoton Technology Corporation - Nuvoton | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:ISD25120S
US $12.00 - 15.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

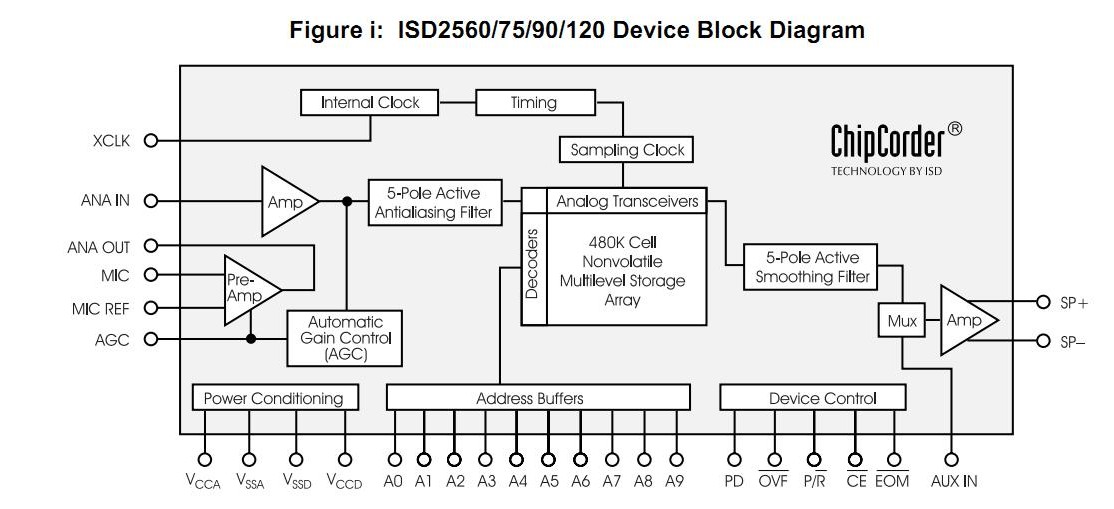

The ISD25120S is a CMOS device. It provides high-quality, single-chip record/playback solutions for 60- to 120-second messaging applications. The ISD25120S includes an on-chip oscillator, microphone preamplifier, automatic gain control, antialiasing filter, smoothing filter, speaker amplifier, and high density multilevel storage array. In addition, the ISD25120S is microcontroller compatible, allowing complex messaging and addressing to be achieved.

Parametrics

ISD25120S absolute maximum ratings: (1)Junction temperature: 150℃; (2)Storage temperature range: –65℃ to +150℃; (3)Voltage applied to any pin: (VSS – 0.3 V) to (VCC + 0.3 V); (4)Voltage applied to any pin (Input current limited to ±20 mA):(VSS – 1.0 V) to (VCC + 1.0 V); (5)Lead temperature (soldering – 10 seconds): 300℃; (6)VCC – VSS: –0.3 V to +7.0 V.

Features

ISD25120S features: (1)Easy-to-use single-chip voice record/playback solution; (2)High-quality, natural voice/audio reproduction; (3)Manual switch or microcontroller compatible playback can be edge- or level-activated; (4)Single-chip durations of 60, 75, 90, and 120 seconds ; (5)Directly cascadable for longer durations; (6)Automatic Power-Down (Push-Button Mode): Standby current 1 μA(typical); (7)Zero-power message storage: Eliminates battery backup circuits; (8)Fully addressable to handle multiple messages; (9)100-year message retention (typical) ; (10)100,000 record cycles (typical); (11)On-chip clock source; (12)Programmer support for play-only applications; (13)Single +5 volt power supply; (14)Available in die form, DIP, SOIC, and TSOP packaging.
