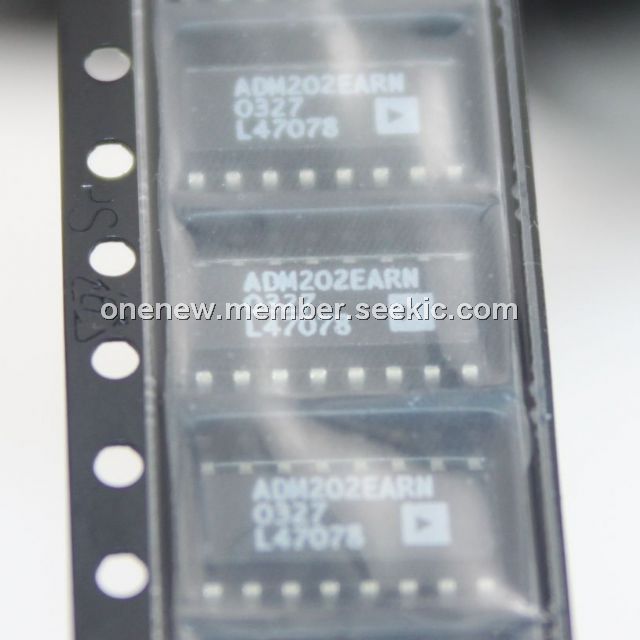

ADM202EARN

RS-232/V.28 interface device, 15KV, 16SOIC, ADM202EARN, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.40

PartNumber:: ADM202EARN

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:ADM202EARN
US $0.30 - 0.40
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADM202EARN is a robust, high speed, 2-channel RS-232/V.28 interface device that operates from a single 5 V power supply. The ADM202EARN is suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/EEC). The ADM202EARN is used for the voltage doubler/inverter, permitting operation from a single 5 V supply. It is suitable for General Purpose RS-232 Data Link, Portable Instruments and PDAs.

Parametrics

ADM202EARN absolute maximum ratings: (1)VCC:-0.3 V to +6 V; (2)V+:(VCC-0.3 V) to +14 V; (3)V–:+0.3 V to -14 V; (4)Input Voltages:TIN:0.3 V to (V+, +0.3 V), RIN:±30 V; (5)Output Voltages:TOUT:±15 V, ROUT:–0.3 V to (VCC + 0.3 V); (6)Short-Circuit Duration:TOUT:Continuous; (7)Power Dissipation N-16(Derate 6 mW/℃ Above 50℃):450 mW,θJA, Thermal Impedance:117℃/W; (8)Power Dissipation R-16(Derate 6 mW/℃ Above 50℃):450 mW,θJA, Thermal Impedance 158℃/W; (9)Power Dissipation RU-16(Derate 6 mW/℃ Above 50℃):500 mW,θJA, Thermal Impedance 158℃/W; (10)Operating Temperature Range:Industrial (A Version):–40℃ to +85℃ ; (11)Storage Temperature Range:–65℃ to +150℃; (12)Lead Temperature (Soldering, 10 sec):300℃; (13)ESD Rating (MIL-STD-883B) (I/O Pins):±15 kV; (14)ESD Rating (IEC1000-4-2 Air) (I/O Pins):±15 kV; (15)ESD Rating (IEC1000-4-2 Contact) (I/O Pins):±8 kV; (16)EFT Rating (IEC1000-4-4) (I/O Pins):±2 kV.

Features

ADM202EARN features: (1)Complies with 89/336/EEC EMC directive; (2)ESD protection to IEC1000-4-2 (801.2); (3)±8 kV: contact discharge ; (4)±15 kV: air-gap discharge; (5)±15 kV: human body model; (6)EFT fast transient/burst immunity (IEC1000-4-4); (7)Low EMI emissions (EN55022); (8)230 kbits/s data rate guaranteed ; (9)TSSOP package option; (10)Upgrade for MAX202E, 232E, LT1181A.
