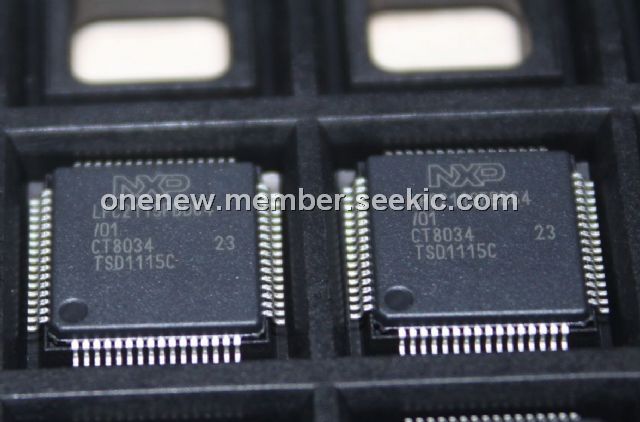

LPC2119FBD64

Product Summary

The LPC2119FBD64 is a Single-chip 16-bit microcontroller. It is based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, together with 128 kB of embedded high-speed flash memory. With a wide range of additional serial communications interfaces, the LPC2119FBD64 is also suited for communication gateways and protocol converters as well as many other general-purpose applications. With the compact 64-pin package, low power consumption, various 32-bit timers, 4-channel 10-bit ADC, two advanced CAN channels, PWM channels and 46 fast GPIO lines with up to nine external interrupt pins the LPC2119FBD64 is particularly suitable for automotive and industrial control applications, as well as medical systems and fault-tolerant maintenance buses.

Parametrics

LPC2119FBD64 absolute maximum ratings: (1)supply voltage (1.8 V):-0.5V to +2.5V; (2)supply voltage (3.3 V):-0.5V to +3.6V; (3)analog supply voltage (3.3 V):-0.5V to +4.6V; (4)analog input voltage:-0.5V to +5.1V; (5)input voltage:5 V tolerant I/O pins:-0.5V to +6.0V,other I/O pins:-0.5V to VDD(3V3)+0.5V; (6)supply current:100mA; (7)ground current:100mA; (8)junction temperature:150℃; (9)storage temperature:-65℃ to +150℃; (10)total power dissipation (per package):1.5 W; (11)electrostatic discharge voltage:-2000V to +2000V.

Features

LPC2119FBD64 features: (1)Fast GPIO ports enable port pin toggling up to 3.5 times faster than the original device; (2)Dedicated result registers for ADC(s) reduce interrupt overhead The ADC pads are 5 V tolerant when configured for digital I/O function(s); (3)UART0/1 include fractional baud rate generator, auto-bauding capabilities and handshake flow-control fully implemented in hardware; (4)Buffered SSP serial controller supporting SPI, 4-wire SSI, and Microwire formats; (5)SPI programmable data length and master mode enhancement Diversified Code Read Protection (CRP) enables different security levels to be implemented ; (6)This feature is available in LPC2114/2124/00 devices as well; (7)General purpose timers can operate as external event counters; (8)16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (9)16 kB on-chip static RAM; (10)Vectored Interrupt Controller with configurable priorities and vector addresses; (11)Up to forty-six 5 V tolerant general purpose I/O pins. Up to nine edge or level sensitive external interrupt pins available; (12)On-chip crystal oscillator with an operating range of 1 MHz to 30 MHz; (13)Two low power modes, Idle and Power-down; (14)Processor wake-up from Power-down mode via external interrupt; (15)Individual enable/disable of peripheral functions for power optimization; (16)Dual power supply.

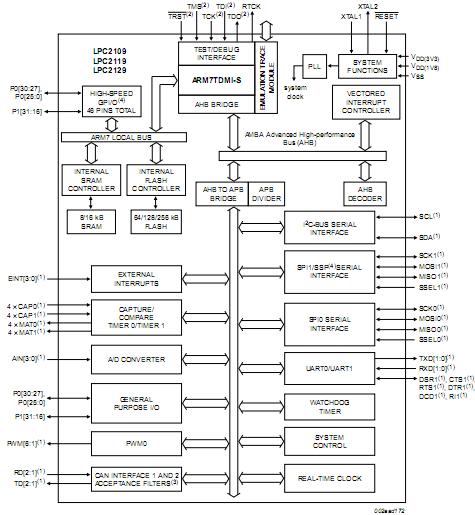

Diagrams
