Product Summary

The PTN78060WAH is a high-efficiency, step-down integrated switching regulator (ISR), that represents the third generation in the evolution of the popular (PT)78ST200, 78ST300, (PT)78HT200, and 78HT300 series of products. In new designs, the PTN78060WAH may also be considered in place of the PT6200, PT6210, and PT6300 series of single in-line pin (SIP) products. In all cases, the device has either similar or improved electrical performance characteristics. The PTN78060WAH has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. It is used in General-Purpose, Industrial Controls, HVAC Systems, Test and Measurement, Medical Instrumentation, AC/DC Adaptors, Vehicles, Marine, and Avionics.

Parametrics

PTN78060WAH absolute maximum ratings: (1)TA Operating free-air temperature: –40℃ to 85℃; (2)Solder reflow temperature: 235℃; (3)Tstg Storage temperature: –40℃ to 125℃; (4)VI Input surge voltage, 10 ms maximum: 38 V; (5)V(Inhibit) Inhibit (pin 3) input voltage: –0.3 V to 5 V; (6)PO Output power: 45 W.

Features

PTN78060WAH features: (1)3-A Output Current; (2)Wide-Input Voltage(7 V to 36 V) / (15 V to 36 V); (3)Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V); (4)High Efficiency (Up to 96%); (5)On/Off Inhibit; (6)Under-Voltage Lockout; (7)Output Current Limit; (8)Overtemperature Shutdown; (9)Operating Temperature: -40℃ to 85℃; (10)Surface Mount Package Available.

Diagrams

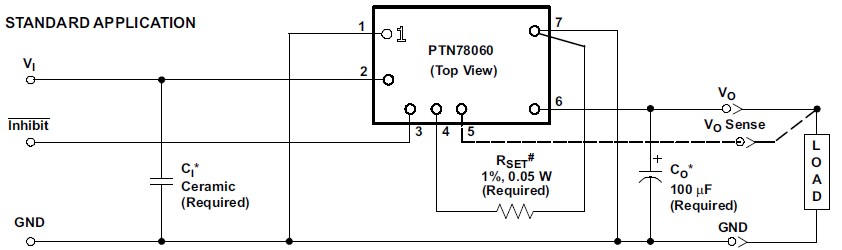

PTN78060WAH diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PTN78060WAH
PTN78060WAH
Texas Instruments
DC/DC Converters 3-A Wide-Input Adj Swtch Reg Mod
Data Sheet
0-1: $13.06
1-10: $11.88
10-25: $10.97
25-50: $10.60
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PTN78000AAZ
PTN78000AAZ
Texas Instruments
DC/DC Converters 1.5A Wide Inp/ Neg Out Adj Module
Data Sheet
0-1: $9.49
1-10: $8.64
10-25: $7.98
25-50: $7.71
PTN78000AAZT
PTN78000AAZT
Texas Instruments
DC/DC Converters 1.5A Wide Inp/ Neg Out Adj Module
Data Sheet
0-187: $5.80
187-250: $5.72
250-500: $5.61
500-750: $5.50
PTN78000HAST
PTN78000HAST
Texas Instruments
DC/DC Converters 1.5 A Wide I/O Adj Module
Data Sheet
0-187: $7.25
187-250: $7.15
250-500: $7.01
500-750: $6.88
PTN78000HAZ
PTN78000HAZ
Texas Instruments
DC/DC Converters 1.5 A Wide I/O Adj Module
Data Sheet
0-1: $11.87
1-10: $10.80
10-25: $9.98
25-50: $9.64
PTN78020HAZ
PTN78020HAZ
Texas Instruments
DC/DC Converters 6A Wide-In Wide Output Adj Module
Data Sheet
0-1: $17.22
1-10: $16.20
10-25: $15.17
25-50: $14.89
PTN78000WAZT
PTN78000WAZT
Texas Instruments
DC/DC Converters ADJ SWITCHING REGULATOR
Data Sheet
0-1: $9.49
1-10: $8.64
10-25: $7.98
25-50: $7.71
