Product Summary

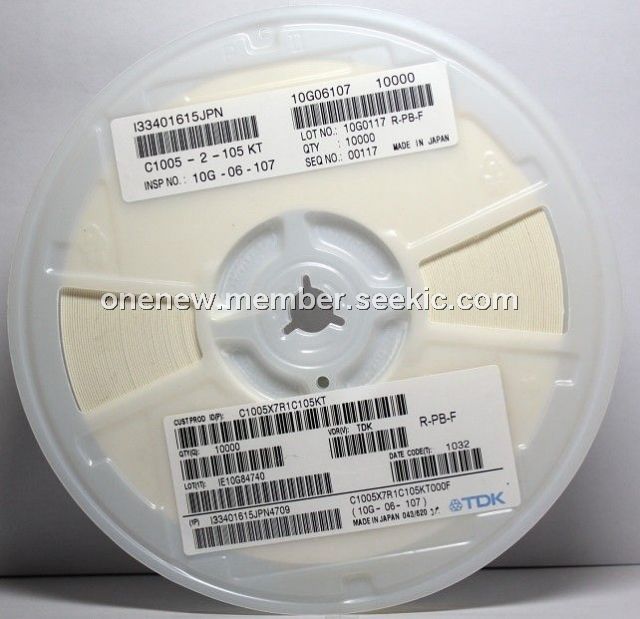

The C1005X7R1C105KT is a ceramic capacitor for general use SMD.

Parametrics

C1005X7R1C105KT absolute maximum ratings: (1)Temperature characteristics: C0G; (2)Capacitance change: 0±30ppm/℃; (3)Temperature range: –55 to +125℃.

Features

C1005X7R1C105KT features: (1)High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers; (2)A monolithic structure ensures superior mechanical strength and reliability; (3)High-accuracy automatic mounting is facilitated through the maintenance of very precise dimensional tolerances; (4)Composed of only ceramics and metals, these capacitors provide extremely dependable performance, exhibiting virtually no degradation even when subjected to temperature extremes; (5)Low stray capacitance ensures high conformity with nominal values, thereby simplifying the circuit design process; (6)Low residual inductance assures superior frequency characteristics.

Diagrams

C1005X7R1C221KT shapes and dimensions
