M24C32-WDW6TP

electrically erasable programmable memory, SOP8, -0.50 to 6.5 V, M24C32-WDW6TP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.50

PartNumber:: M24C32-WDW6TP

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 93+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-22

From Other Seller

Part Number:M24C32-WDW6TP
US $0.40 - 0.50
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

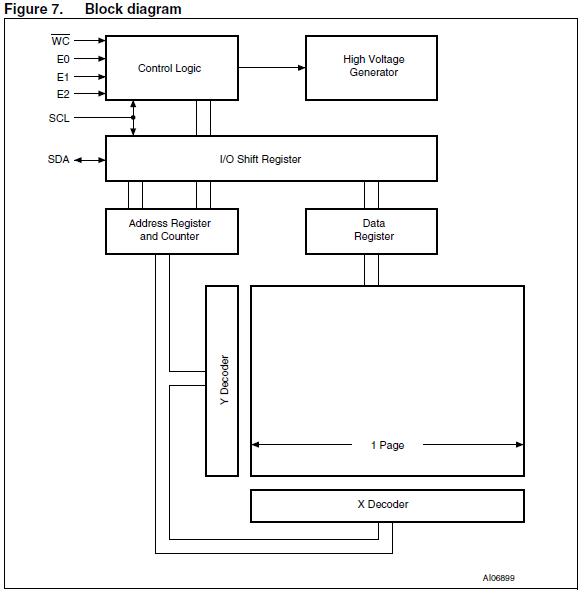

The M24C32-WDW6TP is an I2C-compatible electrically erasable programmable memory (EEPROM). The device behaves as a slave in the I2C protocol, with all memory operations synchronized by the serial clock.

Parametrics

M24C32-WDW6TP absolute maximum ratings: (1)TA, Ambient operating temperature: -40 to 130℃; (2)TSTG, Storage temperatur: -65 to 150 ℃; (3)VIO, Input or output range: -0.50 to 6.5 V; (4)IOL DC output current (SDA = 0): 5 mA max; (5)VCC, Supply voltage: -0.50 to 6.5 V; (6)VESD, Electrostatic discharge voltage (human body model):-4000 to 4000 V.

Features

M24C32-WDW6TP features: (1)Two-wire I2C serial interface supports 400 kHz protocol; (2)Write Control input; (3)Byte and Page Write; (4)Random and Sequential Read modes; (5)Self-timed programming cycle; (6)Automatic address incrementing; (7)Enhanced ESD/latch-up protection; (8)More than 1 Million write cycles; (9)More than 40-year data retention.
