Product Summary

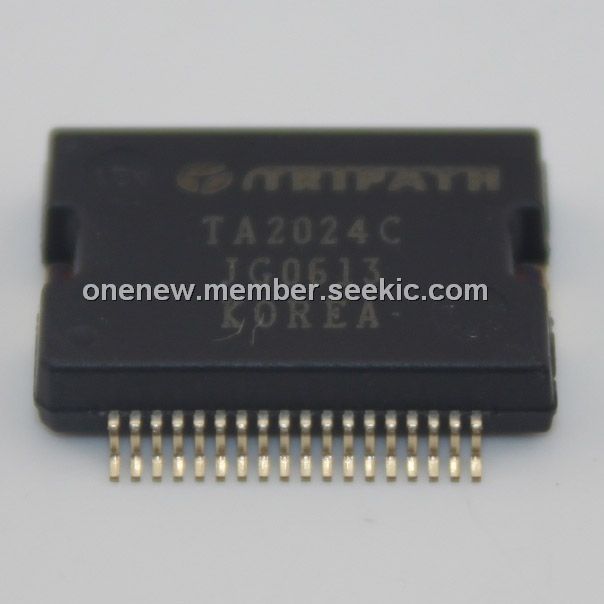

The TA2024C is a 15W/ch continuous average two-channel Class-T Digital Audio Power Amplifier IC using Tripath’s proprietary Digital Power Processing technology. Class-T amplifiers offer both the audio fidelity of Class-AB and the power efficiency of Class-D amplifiers. The TA2024C has incorporated specific changes to improve the click and pop performance over previous devices. The TA2024C is recommended for all new designs. Applications of the TA2024C are: Computer/PC Multimedia, DVD Players, Cable Set-Top Products, Televisions, Video CD Players, Battery Powered Systems.
Parametrics
TA2024C absolute maximum ratings: (1)VDD Supply Voltage: 16 V; (2)V5 Input Section Supply Voltage: 6.0 V; (3)SLEEP SLEEP Input Voltage: -0.3 to 6.0 V; (4)MUTE MUTE Input Voltage: -0.3 to V5+0.3 V; (5)TSTORE Storage Temperature Range: -40 to 150 ℃; (6)TA Operating Free-air Temperature Range: 0 to 70 ℃; (7)TJ Junction Temperature: 150 ℃.
Features
TA2024C features: (1)Dynamic Range = 98 dB; (2)Mute and Sleep inputs; (3)Enhanced Turn-on & turn-off pop suppression; (4)Over-current protection; (5)Over-temperature protection; (6)Bridged outputs; (7)36-pin Power SOP package.
