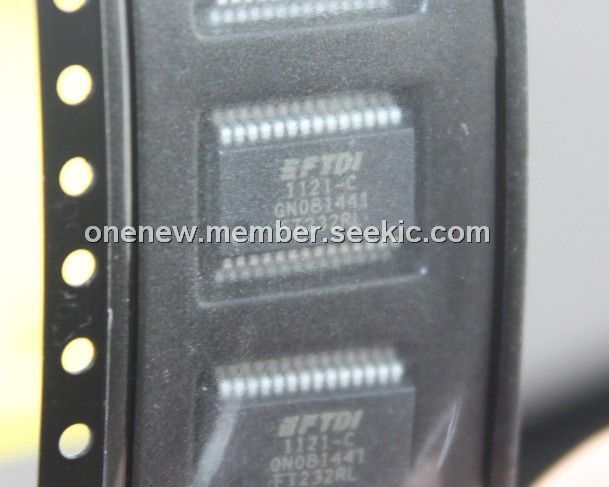

FT232RL

Product Summary

The FT232RL is the latest device to be added to FTDI range of USB UART interface Integrated Circuit Devices. The FT232RL is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID. security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232RL have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device. The FT232RL adds two new functions compared with its predecessors, effectively making it a 3-in-1 chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID.) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.

Parametrics

FT232RL absolute maximum ratings: (1)Storage Temperature: -65℃ to 150℃; (2)Floor Life (Out of Bag) At Factory Ambient ( 30℃ / 60% Relative Humidity): 168 Hours (IPC/JEDEC J-STD-033A MSL Level 3 Compliant); (3)Ambient Temperature (Power Applied): -40℃ to 85℃; (4)Vcc Supply Voltage: -0.5 to +6.00V; (5)D.C. Input Voltage - USBDP and USBDM: -0.5 to +3.8V; (6)D.C. Input Voltage - High Impedance Bidirectionals: -0.5 to +(Vcc +0.5)V; (7)D.C. Input Voltage - All other Inputs: -0.5 to +(Vcc +0.5)V; (8)D.C. Output Current - Outputs: 24mA; (9)DC Output Current - Low Impedance Bidirectionals: 24 mA; (10)Power Dissipation (Vcc = 5.25V): 500mW.

Features

FT232RL features: (1)Single chip USB to asynchronous serial data transfer interface; (2)Entire USB protocol handled on the chip - No USB-specific firmware programming required.; (3)UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.; (4)Fully assisted hardware or X-On / X-Off software handshaking. New configurable CBUS I/O pins.; (5)Auto transmit buffer control for RS485 applications.; (6)Transmit and receive LED drive signals. New CBUS bit bang mode option.; (7)Integrated 1024 Bit internal EEPROM for storing USB VID, PID, serial number and product description strings, and CBUS I/O configuration.; (8)Device supplied preprogrammed with unique USB serial number.; (9)Support for USB suspend and resume. 3.3V to 5.25V Single Supply Operation.; (10)Low operating and USB suspend current.; (11)Low USB bandwidth consumption.; (12)UHCI / OHCI / EHCI host controller compatible; (13)USB 2.0 Full Speed compatible. -40℃ to 85℃ extended operating temperature range.; (14)Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).

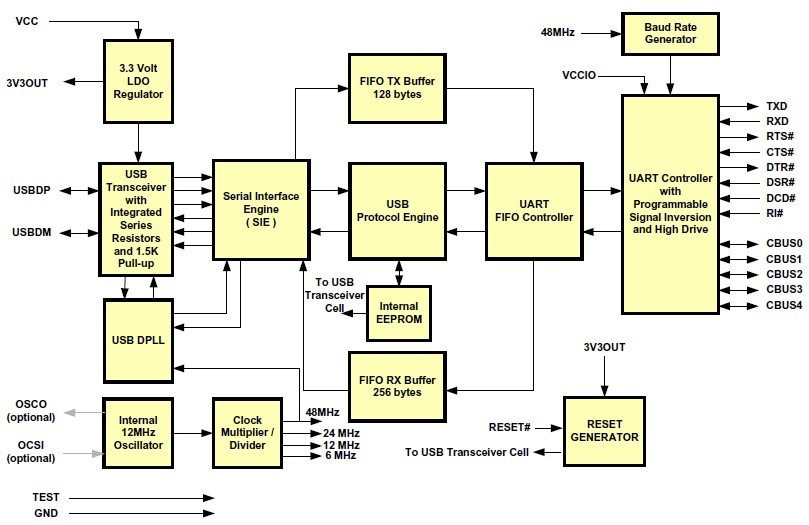

Diagrams
