Product Summary

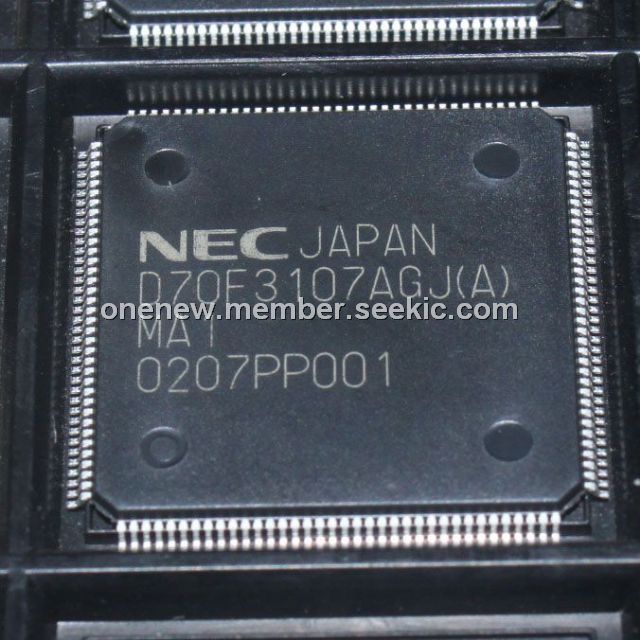

The D70F3107AGJ is a 32-bit single-chip microcontroller that integrates the V850E1 CPU, which is a 32-bit RISC-type CPU core for ASIC, newly developed as the CPU core central to system LSI in the current age of system-on-chip. The D70F3107AGJ incorporates memory and various peripheral functions such as memory controllers, a DMA controller, timer/counters, serial interfaces, and an A/D converter for realizing high-capacity data processing and sophisticated real-time control.
Features
D70F3107AGJ features: (1)PCI bus master cycle control; (2)PCI bus slave cycle control; (3)PCI bus arbiter control; (4)PCI bus error processing; (5)PCI bus address conversion control; (6)CPU interface control; (7)SDRAM control; (8)PCI clock.

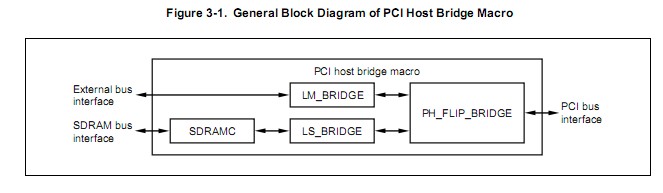

Diagrams
