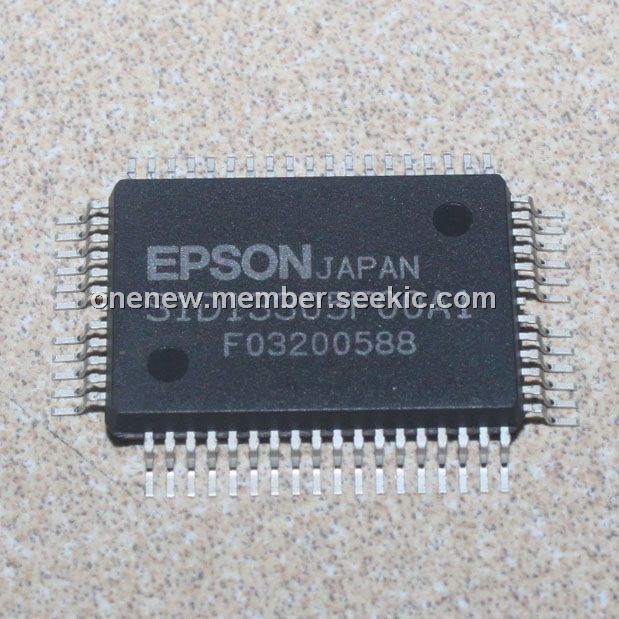

S1D13305F00A10

LCD Controller, TQFP-100PIN, 3.5mA, –0.3V to VDD + 0.3V, 640 × 256 pixel LCD panel, vertical scrolling

Rated 5 Rating 5 | reviews | Write a review

Price:: US $18.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $18.00~20.00

PartNumber:: S1D13305F00A10

Brand:: Epson Company - EPSON | Pack: TQFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:S1D13305F00A10
US $18.00 - 20.00
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The S1D13305F00A10 is a controller IC that can display text and graphics on LCD panel. The device can display layered text and graphics, scroll the display in any direction and partition the display into multiple screens. The S1D13305F00A10 stores text, character codes and bit-mapped graphics data in external frame buffer memory. The S1D13305F00A10 has an internal character generator with 160, 5 * 7 pixel characters in internal mask ROM. The character generators support up to 64, 8 * 16 pixel characters in external character generator RAM and up to 256, 8 * 16 pixel characters in external character generator ROM.

Parametrics

S1D13305F00A10 absolute maximum ratings: (1)Supply voltage range:–0.3V to 7.0V; (2)Input voltage range:–0.3V to VDD + 0.3V; (3)Power dissipation:300 mW; (4)Operating temperature range:–20℃ to 75℃; (5)Storage temperature range:–65℃ to 150℃; (6)Soldering temperature (10 seconds):260℃.

Features

S1D13305F00A10 features: (1)Text, graphics and combined text/graphics display modes; (2)Three overlapping screens in graphics mode; (3)Up to 640 × 256 pixel LCD panel display resolution; (4)Programmable cursor control; (5)Smooth horizontal and vertical scrolling of all or part of the display; (6)1/2-duty to 1/256-duty LCD drive; (7)Up to 640 * 256 pixel LCD panel display resolution memory; (8)160, 5 * 7 pixel characters in internal mask-program-med character generator ROM; (9)Up to 64, 8 * 16 pixel characters in external character generator RAM; (10)Up to 256, 8 * 16 pixel characters in external character generator ROM; (11)6800 and 8080 family microprocessor interfaces; (12)Low power consumption-3.5 mA operating current (VDD = 3.5V), 0.05 μA standby current.
