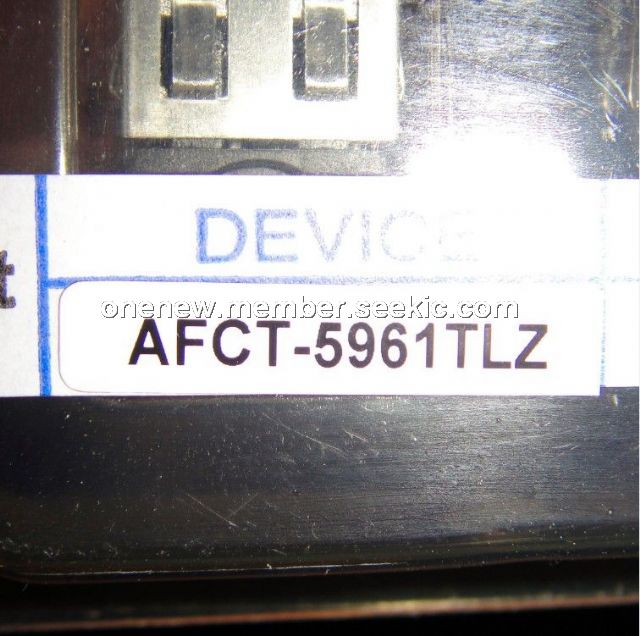

AFCT-5961TLZ

2X5, high performance, cost effective module, 155 Mb/s, +3.3 V, RoHS compliant

Rated 5 Rating 5 | reviews | Write a review

Price:: US $18.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $18.00~20.00

PartNumber:: AFCT-5961TLZ

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-09

From Other Seller

Part Number:AFCT-5961TLZ
US $18.00 - 20.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AFCT-5961TLZ is a high performance, cost effective module for serial optical data communications applications specified for a signal rate of 155 Mb/s. They are designed to provide SONET/SDH compliant intermediate and long reach links at 155 Mb/s. The AFCT-5961TLZ i sdesigned for single mode fiber and operate at a nominal wavelength of 1300 nm. It incorporates high performance, reliable, long wavelength optical devices and proven circuit technology to give long life and consistent service.

Parametrics

AFCT-5961TLZ absolute maximum ratings: (1)Storage Temperature TS: -40 to +85 ℃; (2)Supply Voltage VCC: -0.5 to 3.6 V; (3)Data Input Voltage VI: -0.5 to VCC V; (4)Data Output Current ID: 50 mA; (5)Relative Humidity RH: 85 %.

Features

AFCT-5961TLZ features: (1)RoHS compliant; (2)AFCT-5961TLZ/ATLZ Links of 15 km with 9/125 μm single mode fiber (S1.1); (3)Multisourced 2 x 5 package style with LC receptacle; (4)Single +3.3 V power supply; (5)Temperature range: 0 to +70℃; (6)Wave solder and aqueous wash process compatible; (7)Manufactured in an ISO9002 certified facility; (8)Fully Class 1 CDRH/IEC 825 compliant; (9)LVPECL compatible signal detect output; (10)Transceivers are available with and without EMI nose shield (see ordering information details).
