Product Summary

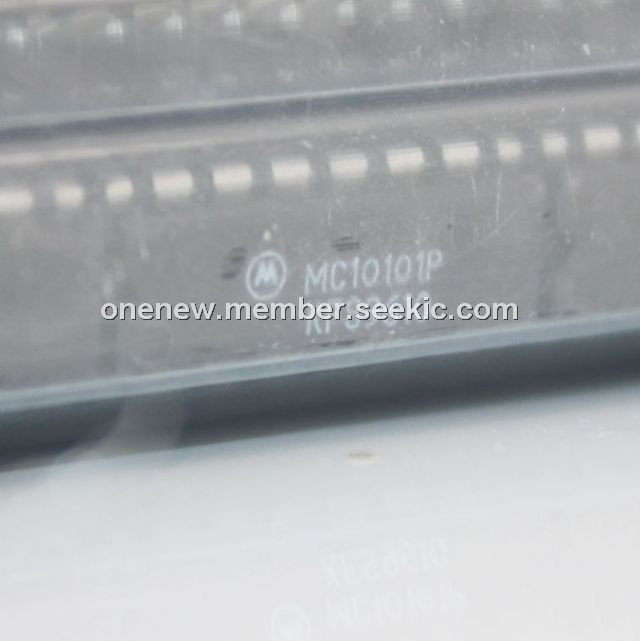

The MC10101P is a quad 2–input OR/NOR gate with one input from each gate common to pin 12.

Parametrics

MC10101P specifications: (1)2-Input OR-Function Logic Gate; (2)Motorola; (3)Logic Gates; (4)Circuits Per Package=4; (5)Features=Comp avail; (6)Noise Rej. Max.=150m; (7)P(D) Max.(W) Power Dissipation=100m; (8)Vsup Nom.(V) Supply Voltage=-5.2; (9)Package=DIP; (10)Pins=16; (11)Military=N; (12)Technology=ECL.

Features

MC10101P features: (1)PD = 25 mW typ/gate (No Load); (2)tpd = 2.0 ns typ; (3)tr, tf = 2.0 ns typ (20%–80%).

Diagrams

MC10101P logic diagram

MC10
MC10
Other

Data Sheet
Negotiable
