Product Summary

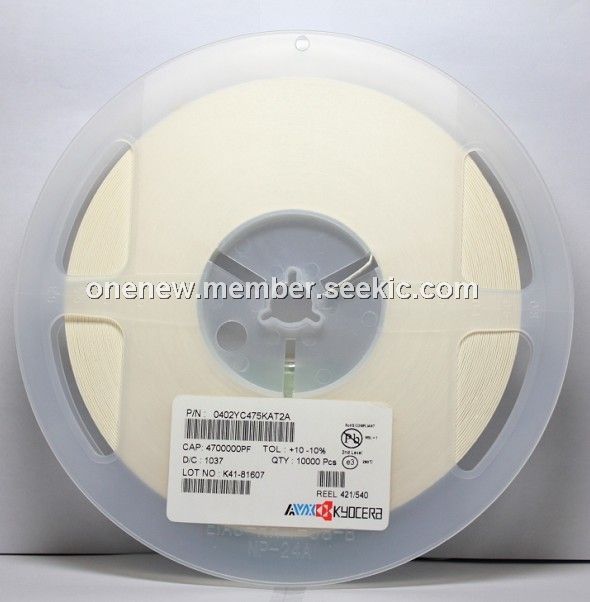

The 0402YC475KAT2A is a Capacitor. It is called “temperature stable” ceramics and fall into EIA Class II materials. The 0402YC475KAT2A is the most popular of these intermediate dielectric constant materials. Its temperature variation of capacitance is within ±15% from -55℃ to +125℃. This capacitance change is non-linear. The 0402YC475KAT2A dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Parametrics
0402YC475KAT2A general specifications: (1)Operating Temperature Range:-55℃ to +125℃; (2)Capacitance:Within specified tolerance; (3)Dissipation Factor: ≤ 2.5% for ≥ 50V DC rating, ≤ 3.0% for 25V DC rating, ≤ 3.5% for 16V DC rating, ≤ 5.0% for ≤ 10V DC rating; (4)Insulation Resistance: 100,000MΩ or 1000MΩ - μF, whichever is less ; (5)Dielectric Strength:No breakdown or visual defects ; (6)Capacitance:4.7uF ; (7)Voltage - Rated:16V ; (8)Tolerance:±10% ; (9)Package / Case:0402 (1005 Metric) ; (10)Mounting Type:Surface Mount, MLCC ; (11)Lead Free Status:Lead Free ; (12)RoHS Status:RoHS Compliant.
Diagrams
 |
