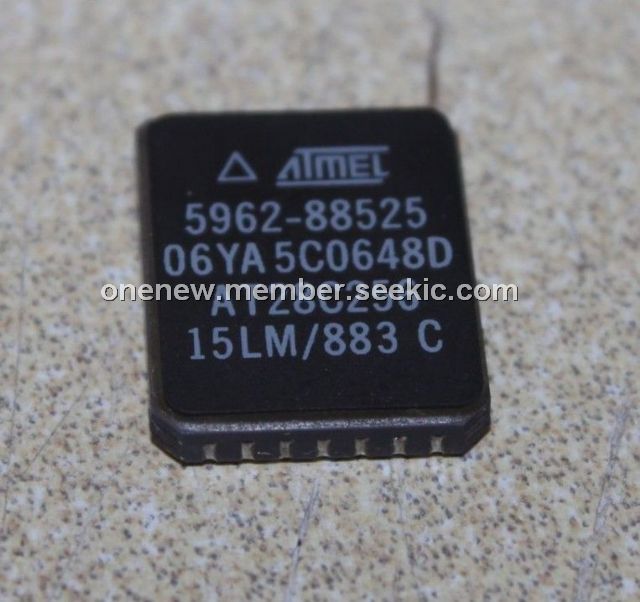

AT28C256-15LM/883

150NS, 256KBit, 5V, 32-Pin CLLCC, Programmable Read Only Memory, 440 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $35.00~45.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $35.00~45.00

PartNumber:: AT28C256-15LM/883

Brand:: ATMEL Corporation - ATMEL | Pack: LCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:AT28C256-15LM/883
US $35.00 - 45.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AT28C256-15LM/883 is a high-performance Electrically Erasable and Programmable Read Only Memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS technology, the AT28C256-15LM/883 offers access times to 150 ns with power dissipation of just 440 mW. When the device is deselected, the CMOS standby current is less than 200 μA.

Parametrics

AT28C256-15LM/883 absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.

Features

AT28C256-15LM/883 features: (1)Fast Read Access Time - 150 ns; (2)Automatic Page Write Operation, Internal Address and Data Latches for 64-Bytes; Internal Control Timer; (3)Fast Write Cycle Times, Page Write Cycle Time: 3 ms or 10 ms Maximum; 1 to 64-Byte Page Write Operation; (4)Low Power Dissipation, 50 mA Active Current; 200 μA CMOS Standby Current; (5)Hardware and Software Data Protection; (6)DATA Polling for End of Write Detection ; (7)Single 5V ± 10% Supply; (8)CMOS and TTL Compatible Inputs and Outputs; (9)JEDEC Approved Byte-Wide Pinout; (10)Full Military, Commercial, and Industrial Temperature Ranges.
