Product Summary

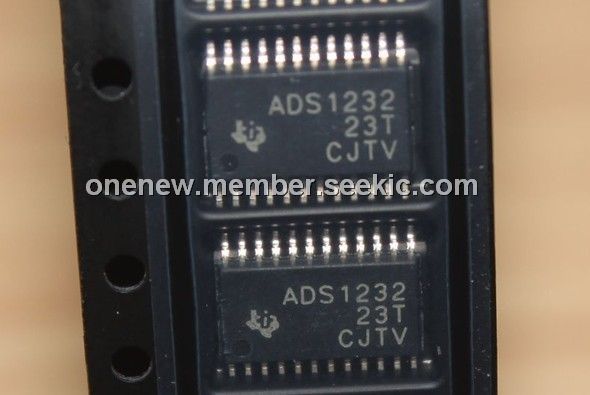

The ADS1232IPWR is a precision 24-bit analog-to-digital converter (ADC). It can provide a complete front-end solution for bridge sensor applications including weigh scales, strain gauges and pressure sensors. The applications of the device include Weigh Scales, Strain Gauges, Pressure Sensors and Industrial Process Control.
Parametrics
ADS1232IPWR absolute maximum ratings: (1)AVDD to AGND: –0.3 to +6 V; (2)DVDD to DGND: –0.3 to +6 V; (3)AGND to DGND: –0.3 to +0.3 V; (4)Input Current: 100mA; (5)Input Current: 10mA; (6)Analog Input Voltage to AGND: –0.3 to AVDD + 0.3 V; (7)Digital Input Voltage to DGND: –0.3 to DVDD + 0.3 V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40 to +105℃; (10)Storage Temperature Range: –60 to +150℃.
Features
ADS1232IPWR features: (1)Complete Front-End for Bridge Sensors; (2)Up to 23.5 Effective Bits; (3)Onboard, Low-Noise PGA; (4)RMS Noise; (5)19.2-Bit Noise-Free Resolution at Gain = 64; (6)Over 100dB Simultaneous 50Hz and 60Hz Rejection; (7)Flexible Clocking: Low-Drift Onboard Oscillator (±3%); Optional External Crystal; (8)Selectable Gains of 1, 2, 64, and 128; (9)Easy Ratiometric Measurements–External Voltage Reference up to 5V; (10)Selectable 10SPS or 80SPS Data Rates; (11)Two-Channel Differential Input with Built-In Temperature Sensor; (12)Simple Serial Digital Interface; (13)Supply Range: 2.7V to 5.3V; (14)–40℃ to +105℃ Temperature Range.

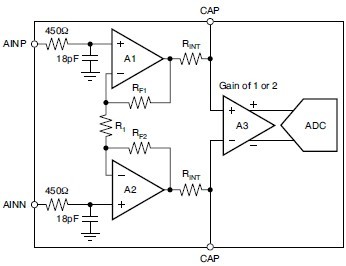

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1232IPWR |
Texas Instruments |
ADC (A/D Converters) 24-Bit Ultra Low-Noise |
Data Sheet |
|
|
||||||||
|
ADS1232IPWRG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Ultra Low-Noise |
Data Sheet |
|
|
||||||||
