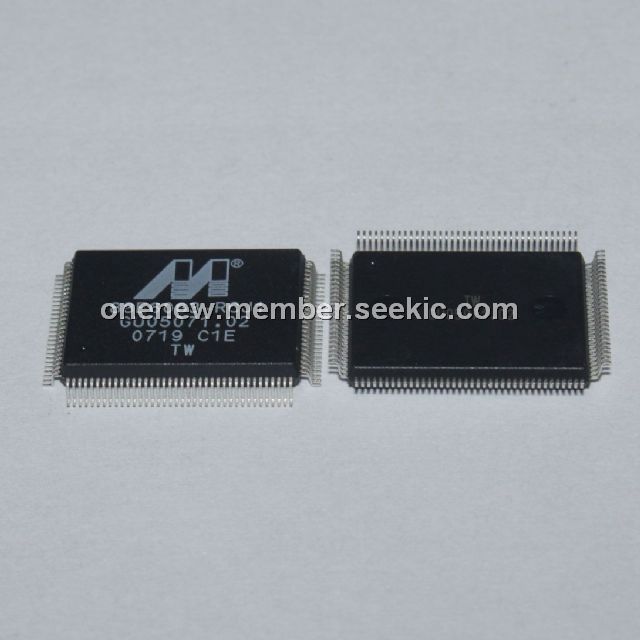

88E6063-RCJ1

7-Port Fast Ethernet Switch, 802.1Q, QFP-100PIN, low power, less than 1W, Marvell Technology Group Ltd

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.50~4.00

PartNumber:: 88E6063-RCJ1

Brand:: Marvell Technology Group Ltd - MARVELL | Pack: QFP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Bill's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-20

From Other Seller

Part Number:88E6063-RCJ1
US $3.50 - 4.00
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

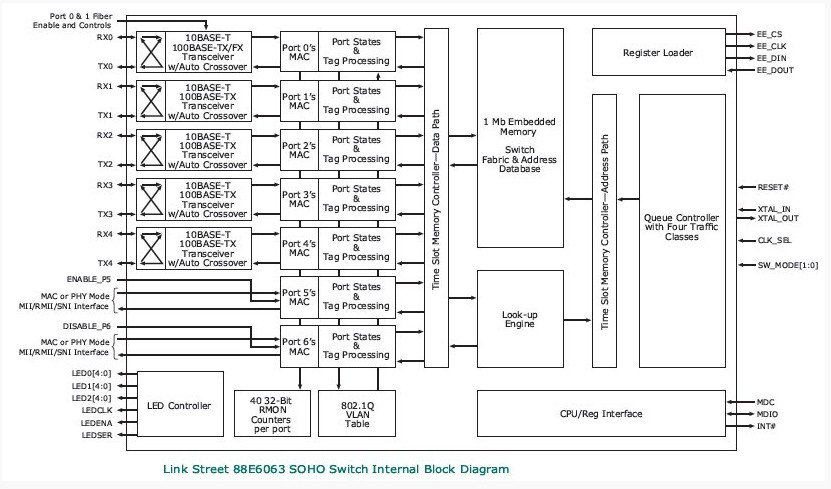

The 88E6063-RCJ1 is a low power Fast Ethernet (FE) switch which provides industry-leading functionality and price-performance ratio for the cost-sensitive Small Office/Home Office (SOHO) gateway/switching market and enterprise desktop switching market. The Link Street 88E6063-RCJ1 device is a 7-port Quality of Service (QoS) switch integrating a high-performance switching fabric with four priority queues, a high-speed address look-up engine, five 10/100 Ethernet digital PHY ports, two MII ports, seven independent Media Access Controllers (MACs), Virtual Cable Testera (VCT) technology for advanced cable diagnostics, 1Mb of memory, and Spanning Tree support. Other advanced features include 802.1p/IPv4/IPv6 traffic classification, 802.1Q VLAN, extensive RMON counters and special power management techniques for lowest power dissipation. The 88E6063-RCJ1 switch has optimizations for faster packet routing and is an ideal product for low cost enterprise-class desktop switches, advanced broadband gateway routers and Multi-Tenant Unit (MTU) gateways.

Parametrics

88E6063-RCJ1 characteristics: (1)Forward Voltage Drop, VFM: 0.72 v @ IF = 5mA; 10v @ IF = 10mA; (2)Peak Reverse Leakage Current, IRM: 25 nA @ VR = 20V; 5 0 pA @ VR = 75V ; (3)Typical Junction Capacitance (VR = OV DC, f = 1.OMHz), Cj: 4 0 pF ; (4)Reverse Recovery Time, trr: 4 0.

Features

88E6063-RCJ1 features: (1)Single-chip integration of a 7-port FE QoS switch; (2)Five integrated 10/100 Ethernet PHY ports and two MII ports; (3)Virtual Cable Testera(VCT) technology; (4)Automatic MDI/MDIX crossover for 100BASE-TX and 10BASE-T ports; (5)High-speed switch fabric; (6)QoS support with four trafTc classes; (7)Port VLAN and 802.1Q VLAN support; (8)Multiple address databases (up to 16); (9)SNMP and trafTc snooping support; (10)Supports a low cost 25 MHz XTAL clock source; (11)CMOS low power dissipation PAVE = less than 1W.
