Product Summary

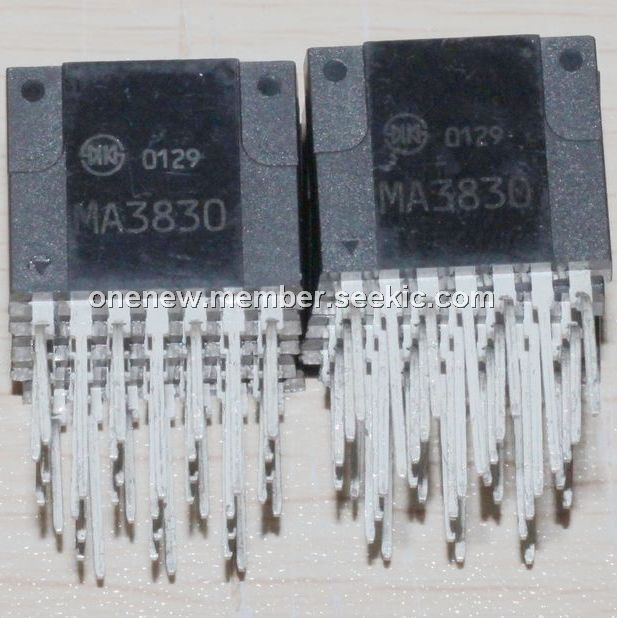

The MA3830 is a power switching regulator.
Parametrics
MA3830 absolute maximum ratings: (1)Storage Temperature Tstg: -30~125℃; (2)Operating Temperature Top: -20~125℃; (3)Junction Temperature Tj: 150℃; (4)Peak Input Voltage Vin: 850V; (5)Input Current Iin: 6A/12A; (6)Maximum Power Dissipation PD: 3W/22W; (7)Dielectric Strength Vdis: 2kV; (8)Insulation Resistance: 100MΩ; (9)Max Voltage ④ to ⑦ V④·⑦: 6V; (10)Max Current ⑥ to ④ I⑥·④: 100mA; (11)Max Current ⑤ to ④ I⑤·④: 500mA.
Features
MA3830 electrical characteristics: (1)On the conditions of VCE=850V, Collector Cutoff Current ICEX: MAX 100 μA; (2)On the conditions of VCE = 5V, IC = 3.0A, DC Current Gain hFE: 11~22; (3)On the conditions of IC=3.0A, IB=0.6A, VCE(sat): MAX 1.0 V; (4)On the conditions of IC=1.5A, IB=0.3A, Driving Saturation Voltage: MIN 1.7 V; MAX 2.3 V; (5)On the conditions of Junction to Case, Thermal Resistance θjc: MAX 2.2 ℃/W.

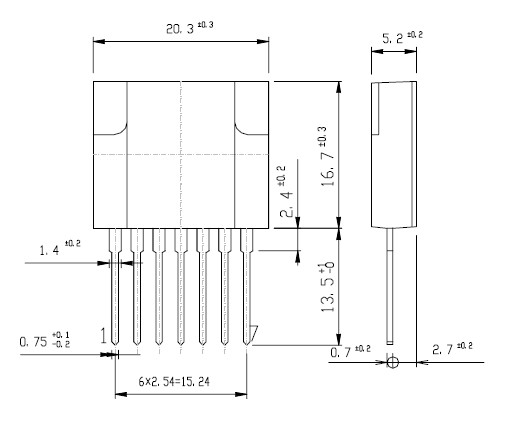

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MA3830 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MA3830-4104 |
Shindengen |
Switching Converters, Regulators & Controllers Inp V=180-276 W=100 |
Data Sheet |
Negotiable |
|
||||
|
MA3830-4105 |
Shindengen |
Switching Converters, Regulators & Controllers Inp V=180-276 W=100 |
Data Sheet |
Negotiable |
|
||||
|
MA3830-7100 |
Shindengen |
Switching Converters, Regulators & Controllers Inp V=180-276 W=100 |
Data Sheet |
Negotiable |
|
||||
|
MA3830-7104 |
Shindengen |
Switching Converters, Regulators & Controllers Inp V=180-276 W=100 |
Data Sheet |
Negotiable |
|
||||
|
MA3830-7105 |
Shindengen |
Switching Converters, Regulators & Controllers Inp V=180-276 W=100 |
Data Sheet |
Negotiable |
|
||||
|
MA3830-4100 |
Shindengen |
Switching Converters, Regulators & Controllers RO 627-MA3830-7100 |
Data Sheet |
Negotiable |
|
||||
