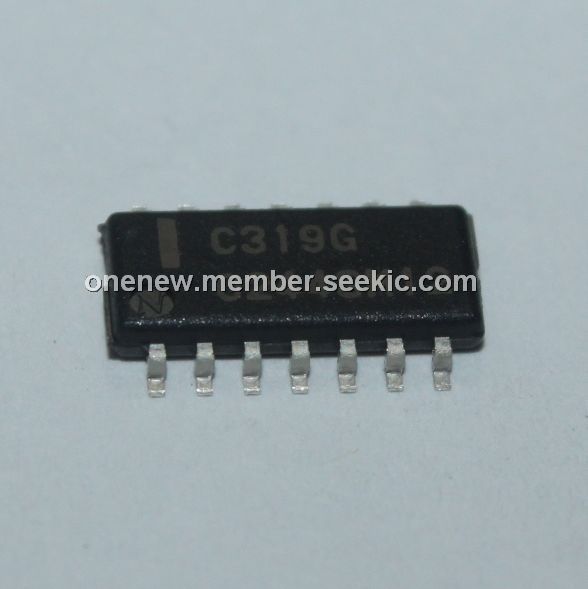

Product Summary

The UPC319G2-E1 is a precision high speed dual comparator designed to operate over a wide range of supply voltage down to a 5V logic supply and ground. Further advantage, the UPC319G2-E1 has excellent input characteristics and direct drive capability to all the popular logic families.

Parametrics

UPC319G2-E1 absolute maximum ratings: (1)voltage between V+ and V-, V+-V-: -0.3 to 36V; (2)differential input voltage, VID: ±5V; (3)input voltage, VI: V--0.3 to V++0.3V; (4)output to negative supply voltage, VO-V-: -0.3 to 36V; (5)ground to negative supply voltage, VGND-V-: -0.3 to 25V; (6)ground to positive supply voltage, V+-VGND: -0.3 to 18V; (7)power dissipation, PT: 570mW; (8)output short circuit duration: 10sec; (9)operating temperature range, Topt: -20 to 80℃; (10)storage temperature range, Tstg: -55 to 125℃.

Features

UPC319G2-E1 features: (1)operate from single 5V supply; (2)typically 80ns response time at ±15V; (3)open collector output; (4)minimum fan-out of 2 each side (TTL); (5)high common mode slew rate.

Diagrams

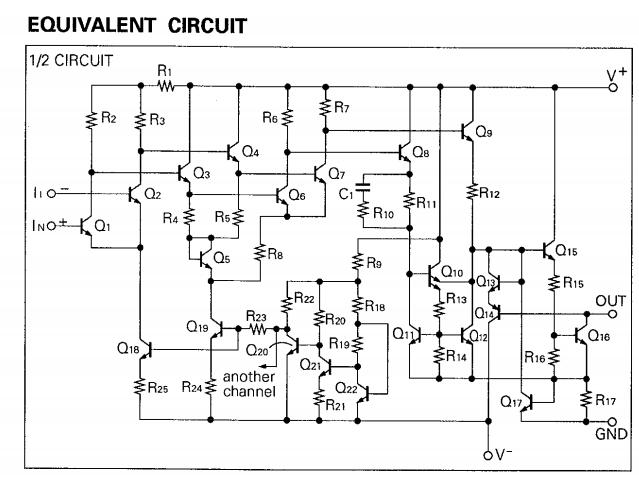

UPC319G2-E1 equivalent circuit

UPC319G2
UPC319G2
Other

Data Sheet
Negotiable
