Product Summary

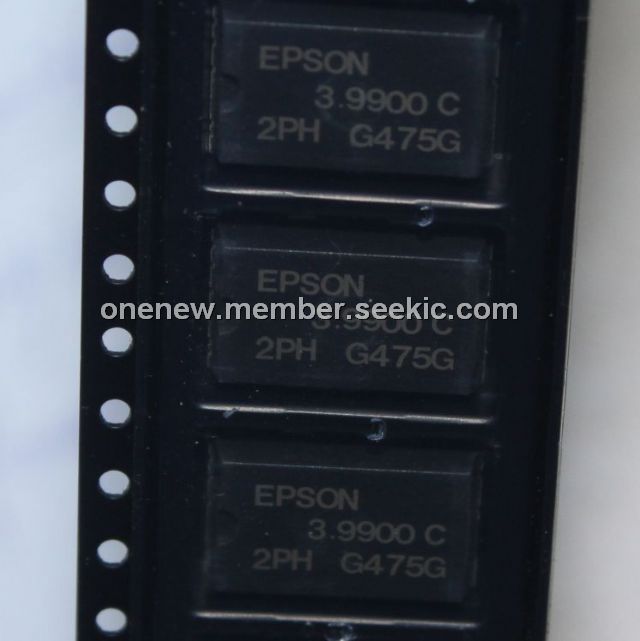

The SG-8002JA 3.9900 is a programmable high-frequency crystal oscillator.

Parametrics

SG-8002JA 3.9900 absolute maximum ratings: (1)Package / Case: 4-SMD, No Lead (DFN, LCC); (2)Output: CMOS; (3)Operating Temperature -20 ~ 70℃; (4)Frequency Stability: ±50ppm; (5)Available Frequency Range: 1MHz ~ 125MHz.

Features

SG-8002JA 3.9900 features: (1)Wide frequency output by PLL technology; (2)Quick delivery of samples and short lead mass production time; (3)Excellent shock resistance and environmental capability; (4)Output enable function (OE) and stand-by function (ST) can be used for low current consumption applications; (5)Package and pin compatible with SG-615.

Diagrams

SG-8002JA 3.9900 external dimensions
